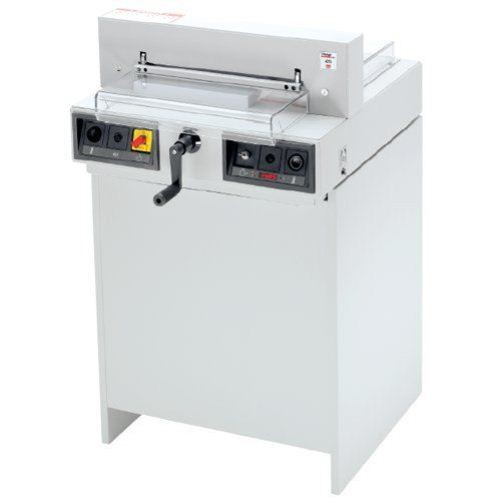

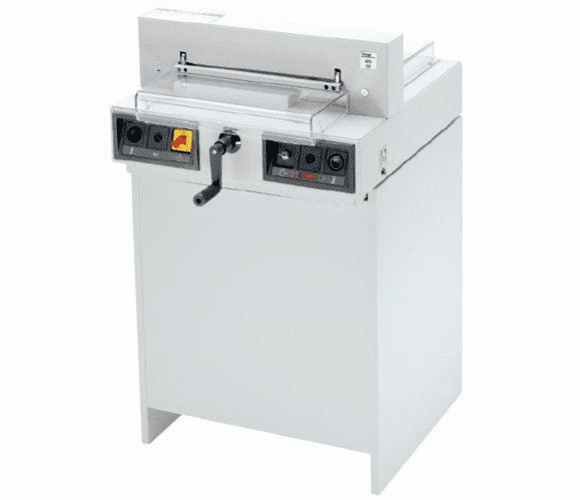

4350 16-7/8" Automatic Electric Paper Cutter By MBM Triumph
Item # cu0452
Brand: MBM Triumph
Reg. $4,999.00
Sale $4,999.00
(You Save 0%)
In Stock - Usually ships the next business day
- Description
- Specs
- Accessories
- Related Items
- Reviews
Specifications
- SCS (Safety Cutting System) package
- Hinged, transparent electronically controlled front safety guard
- Transparent safety cover on rear table
- Main switch and safety lock with key
- Electronically controlled, true two-hand operation
- 24 volt controls (low voltage)
- Patented IDEAL safety drive
- Automatic blade return from every position
- Disc brake for instant blade stop
- Blade and cutting stick can be changed without removing covers
- Blade changing device covers cutting edge of blade
- Blade depth adjustment from outside of machine
- Electric blade and clamp drive
- Soligen steel blade
- Solid steel blade carrier and adjustable blade guides
- Automatic clamp
- Precision side guide
- Spindle-guided back gauge with calibrated crank
- Digital display for precise back gauge positioning
- Bright, LED optical cutting line
- All-metal construction
- Optional stand or cabinet (shown)
- UL and C UL approved
- Cutting Width:16 7/8"
- Cutting Height : 1 1/2"
- Narrow Cut : 1 3/8"
- Cutting Length Behind Blade: 15 5/16"
- Table Length in Front of Blade: 9"
- Table Length Behind Blade: 17"
- Motor: 3/5 hp
- Power Supply: 115 V, 60 Hz
- Dimensions: 27 1/4" x 25 1/4" x 14 1/8" (41 1/2" H with stand, 42 1/2" H with cabinet)
- Shipping Weight: 191 lbs. (217 lbs. with stand, 278 lbs. with cabinet)
- Warranty: 1 Year Manufacturer Warranty
