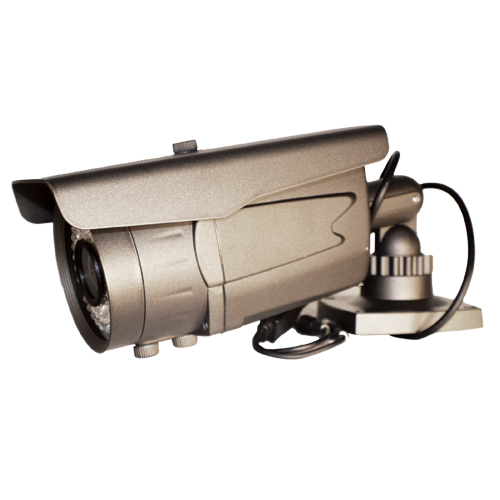

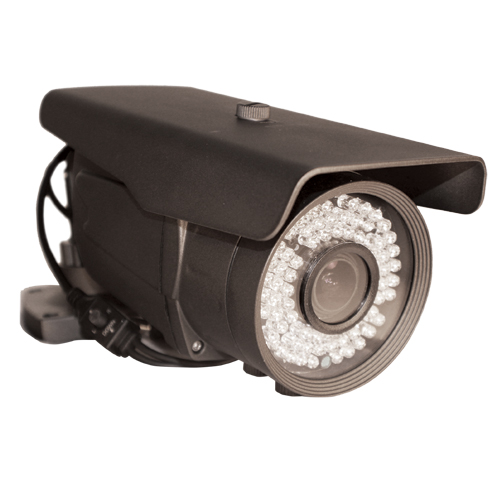

BC-650WC-DN HIGH RESOLUTION 650 TVL DAY/NIGHT COLOR CAMERA WITH WIDE ANGLE LENS By Armor

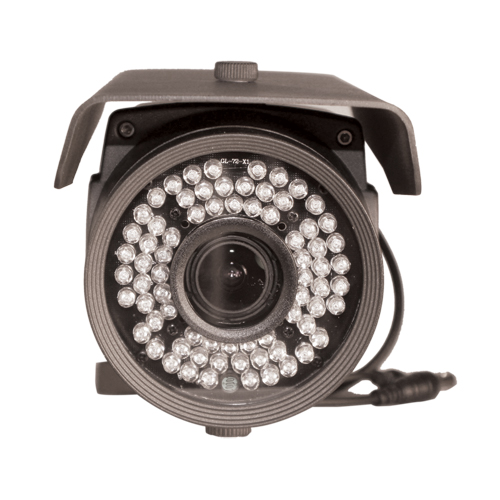

HIGH RESOLUTION DAY/NIGHT COLOR CAMERA W/ WIDE ANGLE - 650 TV LINES This is the highest resolution analog night vision security camera on the market. This features the newest, state of the art image signal processor called SONY EFFIO-E that allows for CCTV Video resolutions much higher than previous technology. This security camera has a resolution of 650 TV Lines (TVL), which is 30% higher than normal CCTV Cameras. It has 72 infrared LEDs for night vision for a minimum of 150ft in complete darkness and farther if there is other lighting around. The lens on this camera is manually adjustable. You can set it from 2.8mm to 12mm zoom length, meaning you can go set the camera to get a 130 degree wide angle view to cover a large area, or zoom in to 3X at a 28 degree angle of view to see objects farther away. On top of all these features, it also has Digital Noise Reduction (DNR). This is yet another feature that puts this camera above other cameras in the market. Most cameras on the market will display very grainy video during night time, with this camera featuring DNR; the noise is greatly reduced. This hi res security camera also has another trick - ATR (Adaptive Tone Reproduction) that improves visibility of the entire picture by adjusting contrast in specific areas that are too bright or too dim.

This camera also comes with an on screen display menu controlled by a small joystick located on the cord of the camera to navigate around the menu. This on screen display menu allows the user to adjust many camera settings and features. As for mounting this camera, it comes with a 3 axis bracket that lets you mount the camera on a wall, ceiling, or flat horizontal surface like the top of a roof. The bracket also allows the cable to run through the inside of the bracket, which protects your camera cable from being cut.

Features: Weatherproof IR Camera, SONY Exview HAD CCD II (ICX672/3AKA), 72 pcs ?5mm IR-LED, IR Range 50M, OSD/2D-DNR/BLC/MD/Privacy Masking, 3-Axis Design, easy for installation, Built-in 2.8—12mm Manual Zoom Les

Specifications: Image Device: 1/3” Exview HAD CCD II, DSP Device:Effio-E, Resolution: Color Mode: 650TVL; B/W Mode: 700TVL, Picture Elements: PAL: 976(H) × 582(V) NTSC: 976(H) × 494(V), IR Led & IR Range: 72pcs ?5 IR Led; 150 feet IR Distance, Min. Illumination: 0.001 Lux (F2.0)/ 0 Lux IR On, Lens Furnished: Built-in 2.8--12mm Manual Zoom Lens, TV System: PAL/NTSC, Electronic Shutter: NTSC: 1/60~1/100,000, PAL: 1/50~1/110,000, Gamma: 0.45, Exposure: Auto, Shutter/ AGC: Auto/Manual, White Balance: ATW / User1/User2, Backlight: OFF/ON/BLC/ HLC, Picture Adjust: Mirror/Brightness/Contrast/Sharpness/Hue/Gain, ATR: ON/OFF, Motion Detection: OFF/ON (Detect sense/ Area Sel.), Privacy Masking: OFF/ON (4 Zone), Day/Night: True Day and Night (Auto/ Day / Night / Ext. D&N), 2D-NR: OFF/ON (Y/C level), Camera ID: OFF/ON, Sync System: Internal, Waterproofing Criterion: IP 66, Video Output:1 Vp-p / 75 Ohms, Power Supply: DC12V±10%, Operation Temperature:-10°c ~ +50°c RH95% Max, Dimension: Body: ?83 x 159mm With Bracket: 230(L) x 86(W) x 83(H), Weight:1600g

UPC : 0747670700112
