Description

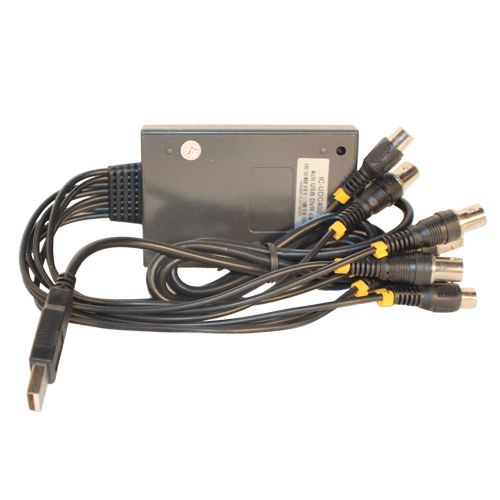

The USB DVR is a surveillance computer hardware that turns your home or office computer
into a powerful, global-wide video surveillance system in 5 minutes or less. Connect this
compact device to any desktop or laptop via USB port. Then you can record live video from
the camera connected to the PC�s hard drive. Works with Windows 7.
Color adjustable for each channel
� MPEG4 Compression
� Video playback, pause, stop, fast-forward, single-frame play and image capture
� Advanced search mode
� Multi-lingual
� Remote surveillance and
� PTZ control
� User friendly interface
� Watch your pets, nanny, babysitter, even your kids
� View from any location in the world via the Internet
� Use your computer's IP address to log on and immediately view live or past video
� Can record to HDD, USB DISK, ZIP Drive, CD/RW
� Supports 5 levels of recording quality
� Can change record frame rate per channel from 1-39 fps. The lower setting of the FPS will save hard drive space
� Support multi channel playback
� Easy to install and operate
System Requirements:
� Intel P4 Celeron processor minimum 1700MHz
� Motherboard Intel 845/865/915 series - Compatible with most Intel Chipsets
� HDD 80G minimum
� RAM 256M minimum
� Video Card GeForce2,GeForce4,FX5200,ATI Rage128
� OS Windows 2000(SP4 above)/2003(SP1 above)/XP(SP2 above)/VISTA
� Direct X 9.0 USB 2.0
Specifications:
Input type: RCA
Video input: Four channels
Audio input: Two channels audio on board, one-channel PC audio
Video output: One-channel VGA video output
Display rate: 25fps (PAL), 30fps (NTSC)
Recording rate: 25fps (PAL), 30fps (NTSC)
Compression format: MPEG4
Video resolution: 640 x 480, 320 x 240 (NTSC)
Record modes: Motion, schedule, manual
Network: TCP/IP
Pan Tilt Zoom: Protocol configurable, remote control capability
Remote software: Supports Internet Explorer web browser
UPC : 0747670600139Show More
